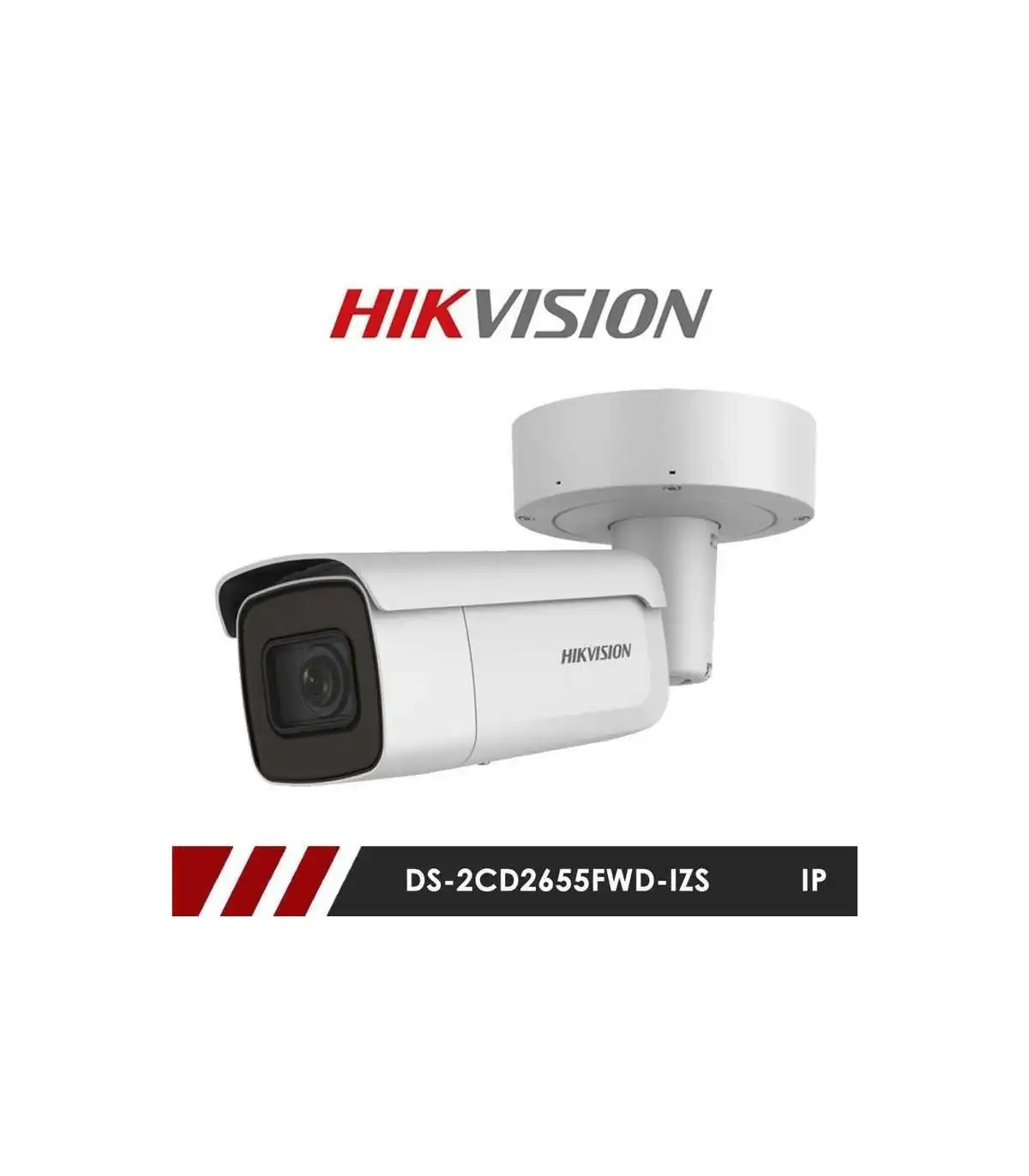

DS-2CD2655FWD-IZS CÁMARA HIKVISION IP DE 5MP PARA EXTERIOR

Camera

Image Sensor:

1/2.9 Progressive Scan CMOS


Signal System:

PAL/NTSC


Min. Illumination:

Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IRColor: 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR


Shutter time:

1/3 s to 1/100,000 s


Slow shutter:

Support


Lens:

2.8 to 12 mmHorizontal field of view: 88° to 27°Vertical field of view: 48° to 16°Diagonal field of view: 104° to 32°


Lens Mount:

?14


Adjustment Range:

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°


Day& Night:

IR Cut Filter


Wide Dynamic Range:

120 dB


Digital noise reduction:

3D DNR


Focus:

Auto







Compression Standard

Video Compression:

H.265+/H.265/H.264+/H.264/MJPEG


Video bit rate:

32Kbps~16Mbps


Audio Compression:

G.711/G.722.1/G.726/MP2L2/PCM


Audio bit rate:

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)


Triple Streams:

Yes








Max. Image Resolution:

2944 × 1656


Frame Rate:

50Hz: 20 fps (2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 ×720)60Hz: 20 fps (2944 × 1656), 30 fps (2560 × 1440, 1920 × 1080, 1280 ×720)


Sub Stream:

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)


Third Stream:

50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288)60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)


Image Enhancement:

BLC/3D DNR/BLC


Image Settings:

Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser


ROI:

Support 1 fixed region for main stream and sub stream separately


Day/Night Switch:

Day/Night/Auto/Schedule/Triggered by Alarm In







Network

Network Storage:

microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR


Alarm Trigger:

Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login


Protocols:

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,IGMP, 802.1X, QoS, IPv6, Bonjour


General Function:

One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, videomask, Watermark, IP address filtering


System Compatibility:

ONVIF (Profile S, Profile G), ISAPI




tr style=margin: 0px; padding: 0px; border: none; outline:


Interface

Audio:

1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound


Communication Interface:

1 RJ45 10M / 100M Ethernet interface


Alarm:

1 input, 1 output (max. 12 VDC, 30 mA), terminal block


Video Output:

1Vp-p Composite Output (75 ?)
